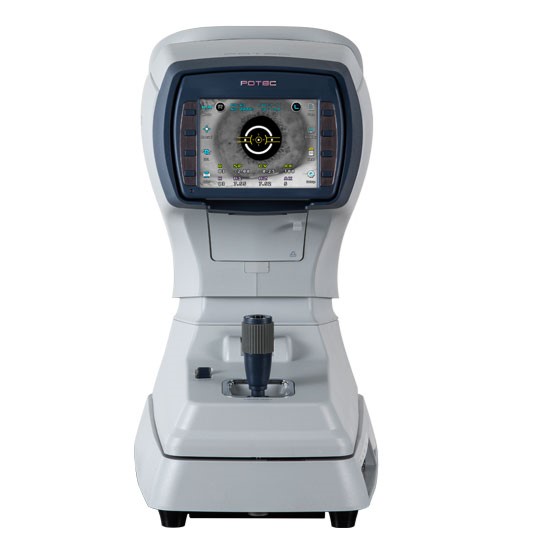

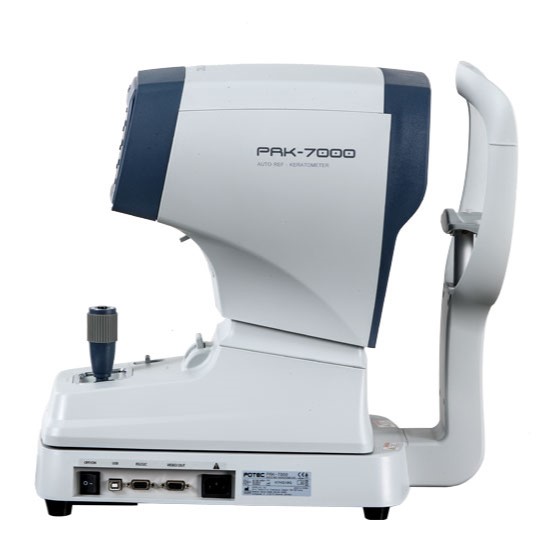

PRK-7000
- Product Auto Ref-Keratometer
- Model PRK-7000
- · Stable measurement result
- · Convenient measurement
- · Various functions
- · The best design for user
 |
Refraction / Keratometry Measurement
PRK-7000 provides a wide measurement range from -25D to +22D for refraction and allows keratometry measurement from 5.0 mm to 10.2 mm. It enables simultaneous measurement of refraction and keratometry with simple and convenient operation, and results can be viewed immediately.
|
 |
User-Friendly Tilting LCD Monitor
The LCD monitor tilts up to 90° to allow easier operation whether the user is seated or standing.
|
 |
Auxiliary Alignment Image for Measurement
The mire alignment and REF alignment images are shown on the opposite eye, improving the accuracy of REF measurement.
|
 |
Motorized Chinrest for Easier Adjustment
The chinrest moves electrically by pushing or pulling the switch on the upper stage, allowing easy adjustment of patient eye level.
|
 |
Peripheral Keratometry Measurement
The patient looks at light sources in four directions in addition to the central keratometry measurement. This helps in selecting a suitable contact lens for the patient.
|
 |
Color Display and Convenient Operation
With a high-resolution VGA color TFT-LCD and touch screen, all functions except joystick and chinrest adjustment can be operated through screen buttons, icons, or key-buttons, increasing user convenience.
|
 |
IOL Measurement
Enhanced measurement light is supported for IOL or cataract patients.
|
 |
Data Transmission
Measured data can be transferred to external devices (e.g., PC) via RS-232 communication. With the optional PC program, eye images can be transferred via USB port and the software can be upgraded more quickly.
|
 |
Guided Alignment During Measurement
During measurement, visual guidance is provided to help align to the center of the eye and to indicate front/rear focus status.
|
 |
Intuitive Diameter Measurement
Using freeze-frame images, corneal or pupil diameter and damaged hard contact lens diameter can be measured simply by dragging a finger across the screen.
|
 |
Quick and Easy Interactive Settings
By touching buttons on the screen, users can instantly confirm and change settings, reducing overall measurement time significantly.
|
No feature information available.
| MEASUREMENT MODES | |
|---|---|
| K/R Mode | Continuous Keratometry and Refractometry |
| REF Mode | Refractometry |
| KER Mode | Keratometry |
| CLBC Mode | Contact Lens Base Curve Measurement |
| K(P) Mode | Peripheral Keratometry |
| REFRACTOMETRY | |
| Vertex Distance(VD) | 0.0/12.0/13.5/15.0 |
| Sphere(SPH) | -25.00 ~ +22.00D (when VD=12mm) (Increments : 0.12 and 0.25D) |
| Cylinder(CYL) | 0.00 ~ ±10.00D (Increments : 0.12 and 0.25D) |
| Axis(AX) | 1 ~ 180° (Increments : 1°) |
| Cylinder Form | -,+,MIX |
| Pupil Distance(PD) | 10 ~ 88mm |
| Minimum Pupil Diameter | Ø2.0mm |
| KERATOMETRY | |
| Radius of Curvature | 5.0 ~ 10.2mm (Increments : 0.01mm) |
| Corneal Power |
33.00 ~ 67.50D (when cornea equivalent refractive index is 1.3375) (Increments : 0.05/0.12/0.25D) |
| Corneal Astigmatism | 0.00 ~ -15.00D (Increments : 0.05/0.12/0.25D) |
| Axis | 1 ~ 180° (Increments : 1°) |
| OTHERS | |
| Corneal Diameter | 2.0 ~ 14.0mm (Increments : 0.1mm) |
| Memory of Data | 10 measurements for each eye |
| Internal Printer | Thermal line printer with Auto - Cutter function |
| Monitor | 14.48 cm(5.7 inch) TFT-LCD (640 × 480 pixels, Touch-Screen function) |
| Power supply | AC100-240V, 50/60Hz (Free Voltage, Free Frequency) |
| Dimensions | Approx. 260(W) × 500(D) × 450(H)mm |
| Weight | Approx. 20kg |
📂
